Double Clamp Phase Volt-Ampere Meter Phase Volt Ampere Tester with Phase Range 0~360 ° Voltage Range 500V Current Range 10A

QIUSUO Double Clamp Phase Volt-Ampere Meter Phase Volt Ampere Tester with Phase Range 0 ~ 360 ° Voltage Range 500V Current Range 10A Technical specifications Voltage Range(reference conditions): 0～ 20V; Resolution: 0.01V;Eror:±(0.5% range) 0～ 200V;Resolution:0.1V;Error:±(0.5% range) 0～ 500V;Resolution: 1V;Error:±(0.5% range) Current Range(reference conditions): 0～200mA;Resolution: 0.1mA; Eror:±(0.5% range) 0～2A;Resolution: 1mA;Eror:t(0.5% range) 0～10A; Resolution:10mA;Error:t(0.5% range) Phase Range(reference conditions): Phase：0 ～ 360°； Resolution：1°； Error：±1 Power Supply：DC9VLR61.5V AAX6PCS(batteries not included during the shipment!!) LCD Size：LCD Size:70mm×62mm；Display Area:64mm×54mm CT Size:Φ8mm Meter Dimensions；196mm×92mm×54mm Weight：1140g Sampling Rate：About 3 times/second Measuring phase amplituderange： Measure phase U1-U2：30V ～ 500V； Measure phase I1-I2：10mA ～ 10.00A Measure phase U1-I2 or I1-U2：10V ～ 500V、10mA ～ 10.00A Data Hold:In measurement, press HOLD key to hold data,“DH” symbol display Auto Shut Down:15 minutes after boot up, the meter shuts down automatically without any operation, to reduce battery consumption Voltage Detection:When the battery voltage is lower than 7.8-8V, low battery symbol” ” display, to reduce the battery consumption Cable:Test wire length 1.5m; current clamp wire length 2m Working Current:Open the backlight max 35mA,the battery continue working about 15 hours;Close the backlight, meter power consumption about 5mA,the battery continue working 100 hours Input Impedance:Test voltage input impedance: 1MΩ; Measure phase U1U2 voltage input impedance :40KΩ Accessories:Host meter: 1PCS; Current Clamp: 2PCS; Test Wire: 4PCS; Meter case: 1PCS

• Dual-clamp digital phase voltammeter is a multifunctional instrument designed for field testing, featuring high accuracy, high stability, low power consumption and ease of use.
• Can directly measure AC voltage and AC current without opening the circuit under test, and measure the phase between two voltages, between two currents and between voltage and current.
• Double clamp digital phase voltammeter is suitable for electric power, petrochemical industry, metallurgy, railroad, meteorology, industrial and mining enterprises, scientific research institutes and metrology departments.

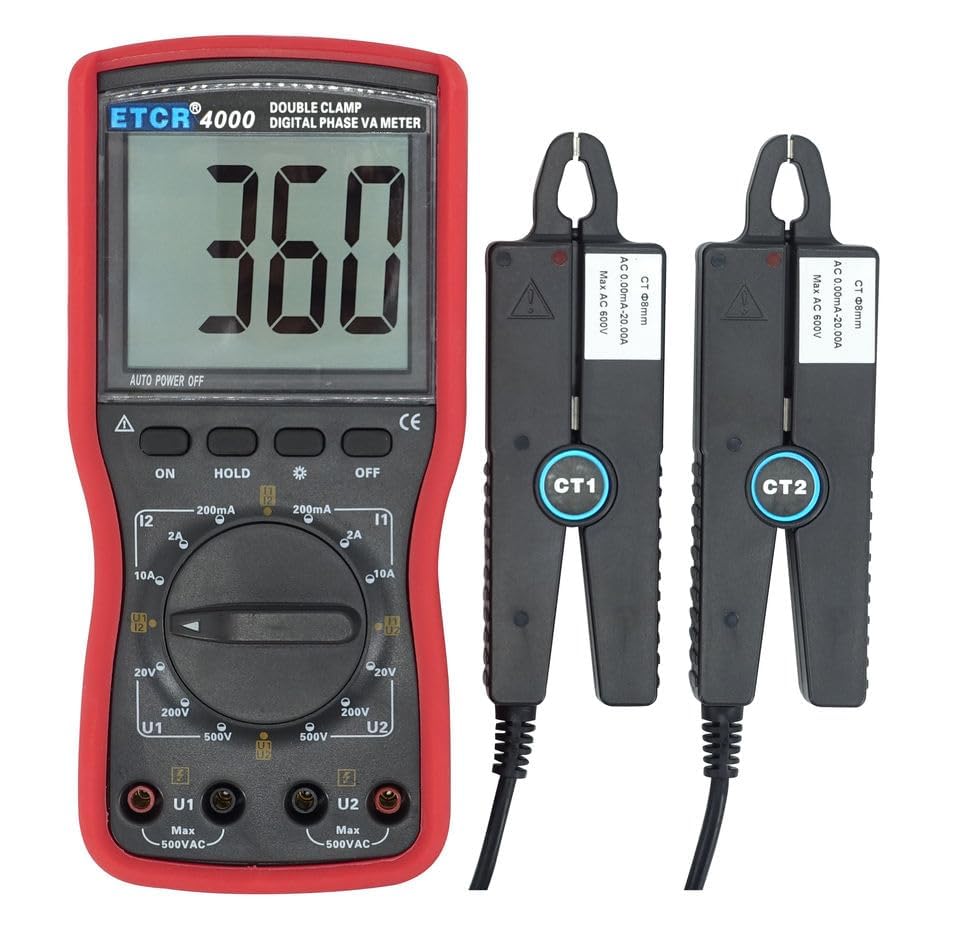

• Double clamp digital phase volt-ampere meter adopts large LCD display, with white screen backlight, the display is clear at a glance, showing the exquisite luxury appearance. Using voltage transformer and current clamp mode input, no high voltage inside the machine, 2-way input completely isolated, stable and reliable.
• Can also indirectly measure the power factor and power of the circuit, you can identify the three-phase phase sequence, transformer wiring group, inductive, capacitive circuits, test the secondary circuit and the busbar protection system, read out the phase relationship between the CT of the groups of differential protection, checking the wiring of the meter is correct, overhauling the line equipment and so on.
